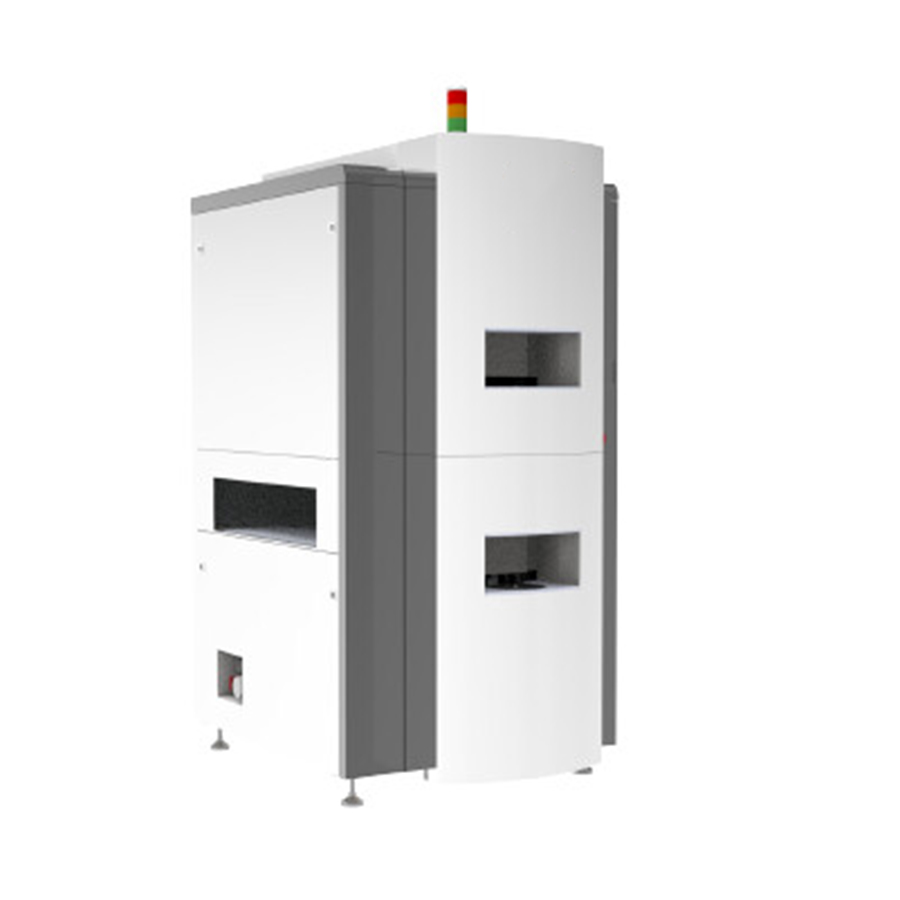

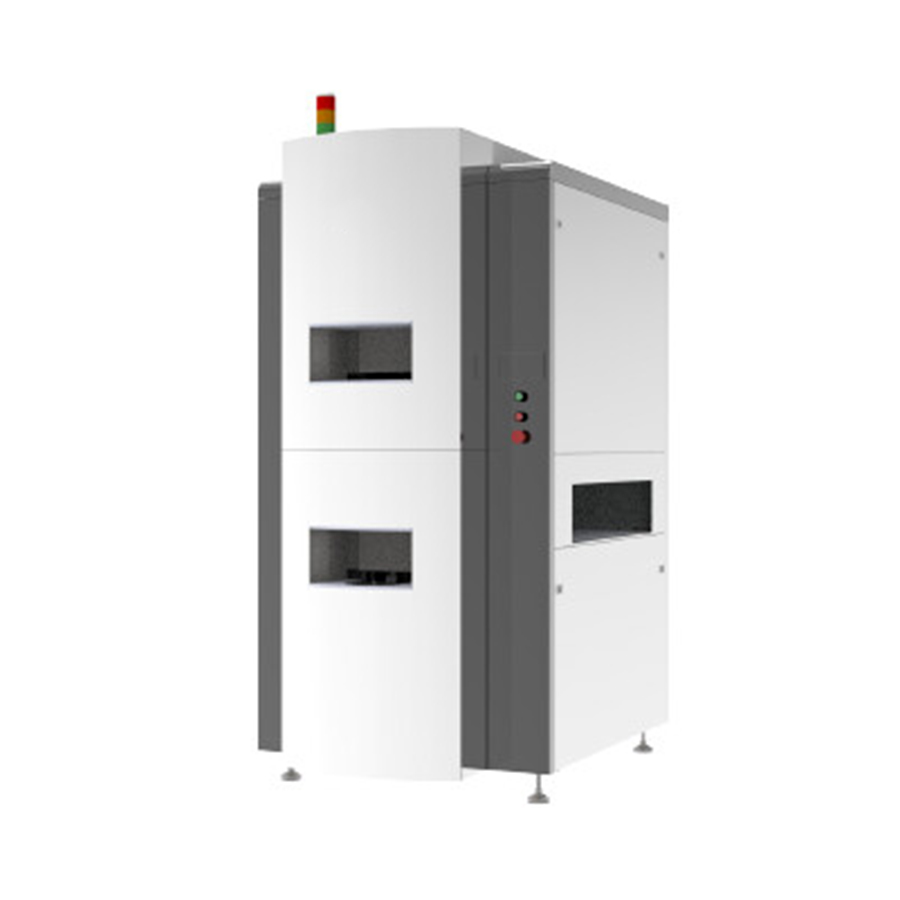

Xray Component Counter, Xray part counter

SMD BOX INLINE

Using cutting-edge X-Ray imaging and automation technology, the Xay reel counter revolutionizes manual SMT component counting. Users can obtain SMD component quantity information in seconds.

  • Scalable system
  • Batch processing capability
  • Parallel material processing
  • AGV ready
  • Material Info. recognition (1D/2D code)
  • 7,13,15-inch reel compatibility
  • Power Suply: 220V
Enquire Now

Specifications

Neo Counter X400

The Neo Counter X400 is an advanced offline SMD component counter designed to revolutionize the component counting process with the latest in X-ray imaging and AI technology. It ensures fast, accurate, and automated counting while seamlessly integrating with your IT systems for real-time component management.

Features

Feature Description
Multi-Reel Capability Supports loading up to 4 reels at a time, enabling efficient batch counting.
Embedded Camera System Detects reel existence and recognizes material information via 1D/2D codes.
X-Ray Imaging Automatically counts components with high precision, storing results in a database for easy access.
AI Technology Accelerates the counting process and supports various component types, including loose and irregularly shaped components.
Connectivity Seamlessly integrates with IT systems (ERP/SCM/MES/WMS) for real-time updates and efficient materials tracking.
Traceability Ensures accurate tracking of SMD components by linking count results to specific reel part IDs.
Reporting System Generates dynamic, real-time reports and custom dashboards for smarter decision-making and data sharing.


How It Works

  1. Load Reels: Up to 4 reels can be placed in the Neo Counter X400.
  2. Recognition: Embedded cameras detect reels and verify material information using 1D/2D codes.
  3. Counting: X-ray imaging technology performs accurate component counts, even for odd-form and loose components.
  4. Data Storage: Results are stored in the database and can be uploaded to IT systems like MES or ERP.

Powered by SMF

The Neo Counter X400 is powered by Smart Material Flow (SMF), an all-in-one software suite that automates and manages materials. Key functionalities include:

  • Material Receiving: Streamlines the intake process.
  • Automated Storage/Retrieval: Enhances storage efficiency.
  • Component Counting: Provides precise inventory updates.
  • Kitting & AGV Control: Optimizes production workflows.

The Neo Counter X400 is the ultimate solution for SMT manufacturers aiming to boost efficiency, ensure traceability, and make data-driven decisions with ease.
