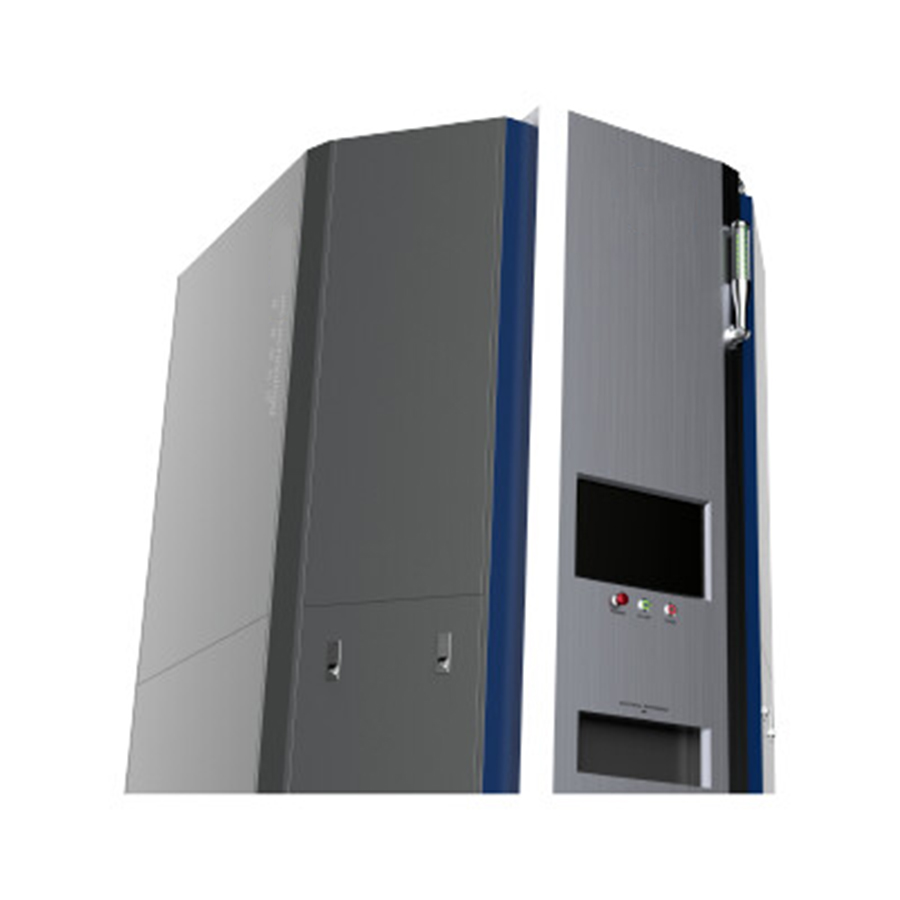

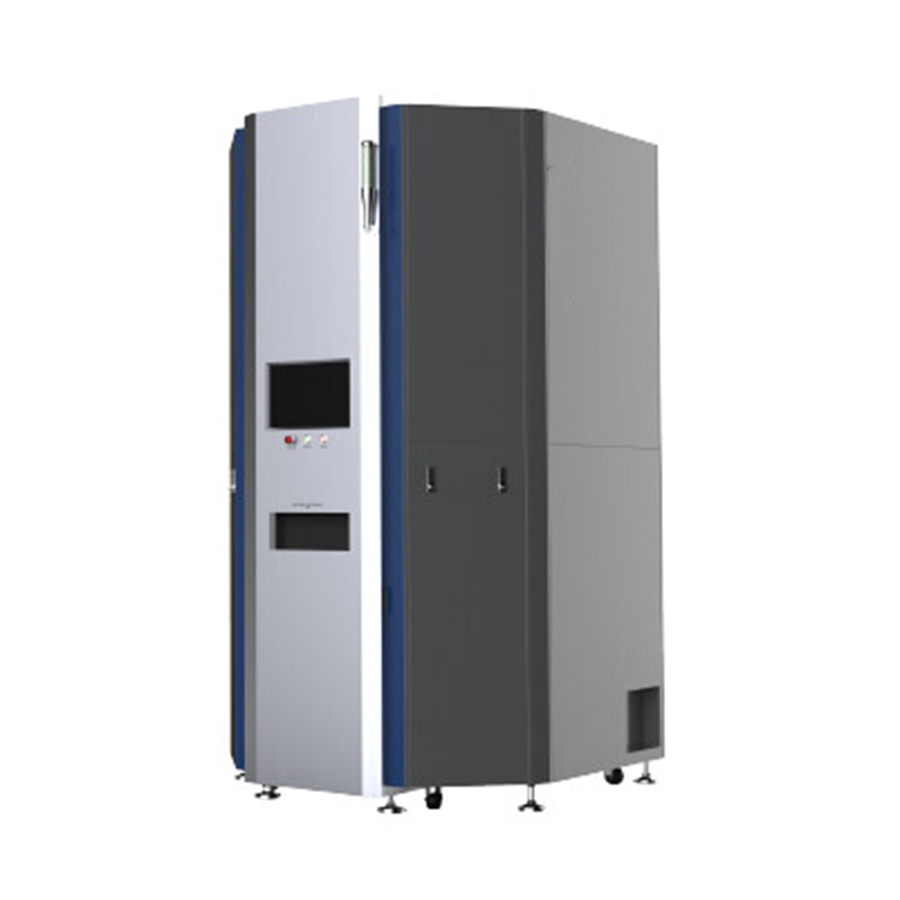

Intelligent SMD Storage System
SMD BOX SISO
SMD BOX SISO automates SMD storage for reel materials and retrieval operations. Users simply need to insert material into SMD BOX SISO. The smart camera system will be activated, and it will scan material information in 1D or 2D, as well as real-time inventory information. Inside, robotic arms move goods to their designated locations. Material location will be updated in the software.
- Max capability: 1000
- Material compatibility: 7，13，15 inch
- Material info.: 1d/2d
- AGV: Yes
- Power Supply: 220V
Specifications
SMD BOX
The SMD BOX is a cutting-edge storage and material management solution designed to enhance automation, streamline workflows, and ensure material traceability. Equipped with advanced features like SISO mode, kitting, MSD tracking, and seamless integration capabilities, the SMD BOX is a perfect choice for efficient SMT production management.
Features
| Feature | Description |
|---|---|
| SISO Mode | Allows Single Input/Single Output operation where SMT reels are loaded, stored, and retrieved seamlessly. Users can request materials by sending job lists or work orders via MES. |
| Kitting | Automates material kitting and replenishment. Simply send a Reel ID, part number, or job list to unload required reels at the right time. |
| MSD Tracker | Ensures compliance with IPC/JEDEC standards for moisture-sensitive devices. Tracks MSD status and automates storage/retrieval, even with moisture barrier bags. |
| Manual Material Supply | Enables flexibility by allowing manual input for special scenarios or emergency operations. |
| Material Info Recognition | Identifies materials using 1D/2D codes for enhanced traceability and accuracy. |
| No Material Pallet Needed | Simplifies operation by eliminating the need for material pallets. |
| MSD Control and Automation | Automatically manages and monitors MSD to prevent quality failures. |
| Reel Compatibility | Supports reels of various sizes: 7-inch, 13-inch, and 15-inch. |
| Connectivity | Integrates seamlessly with MES/ERP systems using SMF protocols or APIs. |
Powered by SMF
The SMD BOX Smart Material Flow (SMF) system, which includes:
- Work Order Management: Streamlines the organization and execution of production tasks.
- Component Profile Management: Tracks and manages components with precision.
- MSD Tracker: Ensures moisture-sensitive devices are handled in compliance with industry standards.
- Connectivity Module: Facilitates integration with external IT systems like MES or ERP using APIs.
The SMD BOX is the ultimate solution for modern SMT production, ensuring efficiency, accuracy, and compliance with industry requirements.
