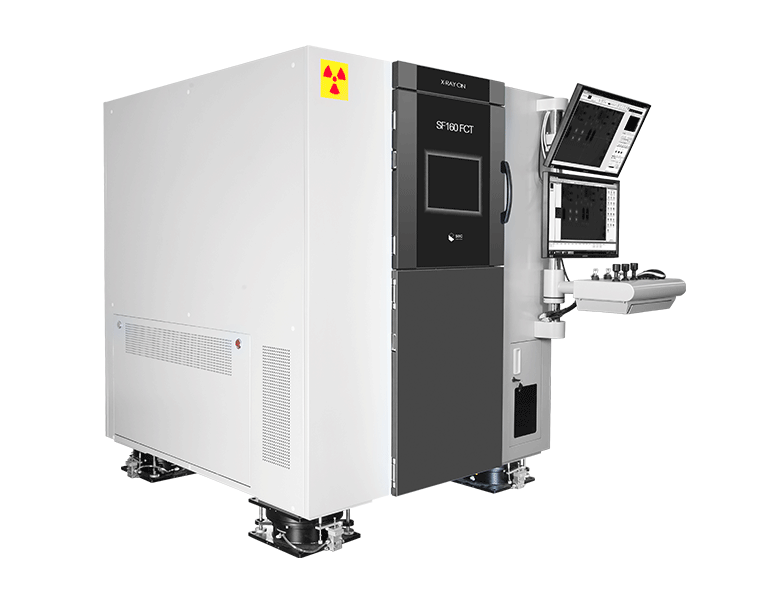

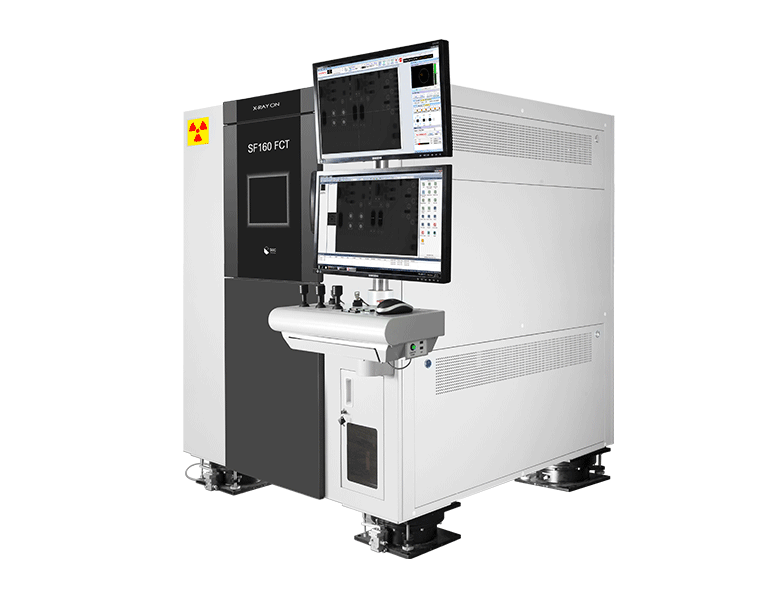

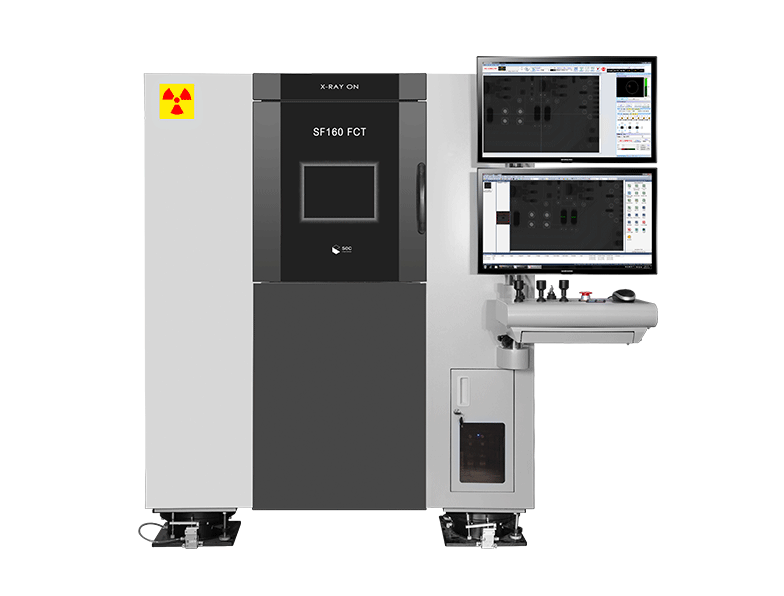

2D & 3D Micro CT System
X-eye SF160 Series
Best performance X-ray Inspection System
A high-performance Micro-focus Open Tube with 160kV has been fitted, detecting fine flaws as small as 1㎛.
Installing a high-priced Open Tube as standard can provide high-resolution X-ray images with the greatest magnification in the world.
The Dual CT capability can be purchased separately, and it detects and analyzes the exact location and extent of faults.
- Non-destructive analysis of semiconductor, SMT, and electron/electric components
- Hybrid Tube Option (160kv/500㎛, 10,000hrs/filament)
- Dual CT - High-quality CT image / high speed scan
Specifications
| X-ray Tube | 160 kV / 200 µA (option 160 kV / 500 µA) |
|---|---|
| Min. Resolution | 0.9 µm |
| Table Size | 460 |
| AXIS | X, Y, Z, Tilt (70º), R, Y-aft, Cone beam R |
| Detector | 5 inch Pixel FPD |
| CT Scan Method | Oblique CT / Cone beam CT |
| Foot print | 1,340mm x 1,460mm x 1,670mm |
| Weight | 2,000kg |
Other Specification
BGA Cold Solder
Stacked Die
Applications
SMT
PCB
PKG
LED
Electronics
Battery
Harness
